Cabinet Solutions

Reliable industrial-grade energy storage solutions.

Contact Sales

109 kWh 50 kW 0.5 C 400 Vac

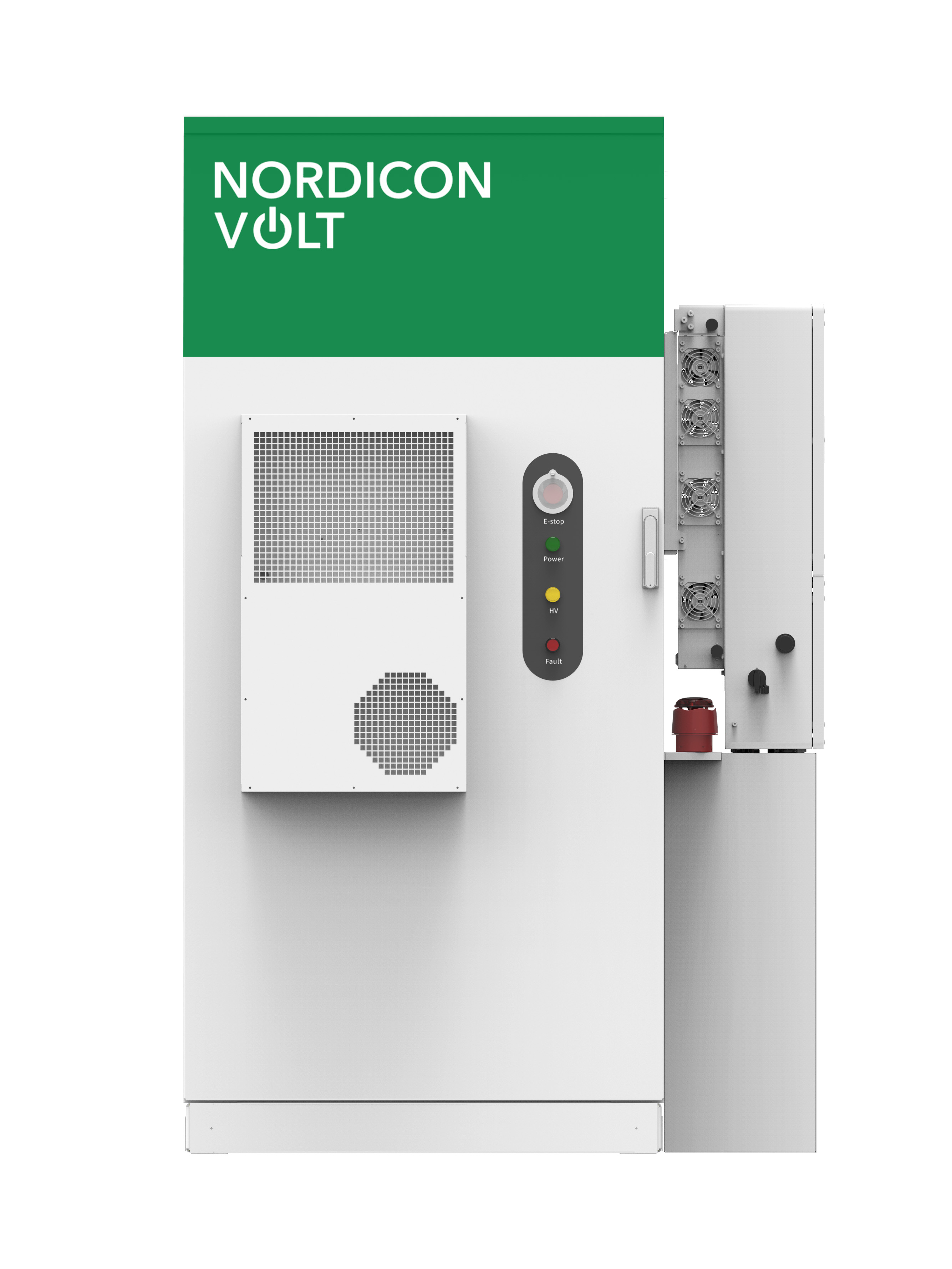

The NCV-STAR-Q is a safe and stable energy storage system for commercial and industrial applications. Equipped with CATL batteries.

Incl. backup power, PV-ESS-Diesel All-in-One System. On/off-grid operation. The NCV-STAR-Q Series offers safe and stable energy storage systems for commercial and industrial applications. Equipped with CATL batteries. LFP CATL batteries with a lifespan of over 10 years.

  • An all-in-one system incl. backup power, direct connection of PV and generator
  • Applicable in cases of grid congestion and/or off-grid situations
  • Modular and expandable
  • Standard equipped with premium CATL cells
  • Available in 2 models
SpecificationValue
Product ModelNCV-STAR-Q-109
Dimensions (W*H*D)1270 x 1340 x 2094 mm
Number of Modules5
Weight1.8 T
Rated Energy109 kWh
Rated Voltage832 Vdc
Voltage Range728-936 Vdc
Standard Charging/Discharging Rate0.5 P
Operating Temperature Range Charge0~55°C Discharge: -25~55°C (>45°C derating)
Level of ProtectionIP54/Battery Pack IP 67
Thermal ManagementSmart Air Cooling
Fire Suppression SystemAerosol, Smoke detector, Heat detector, Flammable gas detector included
PCS Power50 kW
AC-Side Voltage400 V
Off-grid OperationIntegrated STS (Static Transfer Switch)
NCV-STAR-Q
  • An intelligent all-in-one system
  • One-Button Start/Stop
  • Integrated STS (Static Transfer Switch), via hybrid inverter
  • Direct connection of PV and generator
  • On-Off Grid switching time < 10 ms
  • Applicable across different energy markets
  • Applicable in cases of grid congestion and charging stations
  • Fully CE certified and compliant with
    PGS37-1 standard
  • Easy to maintain and robust
  • Perfect system for microgrid and offgrid applications.

Key Features

High Quality

Equipped with high-quality and safe LFP cells that ensure flexible management of energy storage.

Control

24/7 monitoring, smart control, and wireless metering solutions for maximum efficiency.

Economical

A compact design for efficient and space-saving solutions.

Maintenance by NCV

NCV offers full maintenance and support for our solutions, ensuring your systems always perform optimally.

Cooling

Advanced cooling system for efficient and reliable performance.

Safe

Advanced fire safety with a four-layer protection system for maximum reliability.
