Container Solutions

Scalable and flexible energy storage solutions for large-scale applications.

Contact Sales

NCV-TRENE-10ft

Capacity 1044 kWh

Output 500 kW

Discharge Rate 0.5 C

Voltage 230 / 400 Vac 220 / 380 Vac Vac

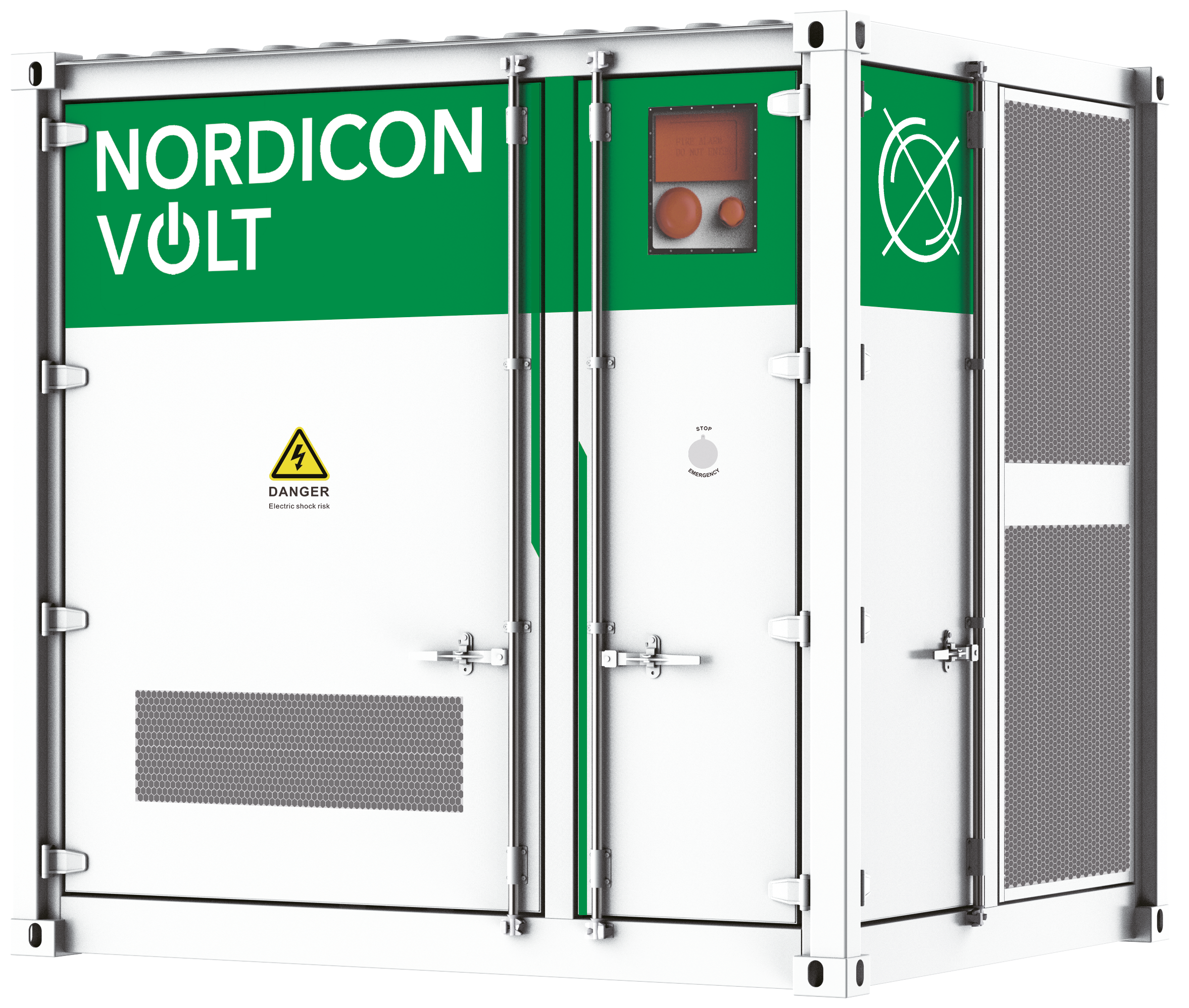

NCV-TRENE 10ft container

A complete and secure energy storage solution for businesses. Manages power consumption smartly, integrates with solar energy and EV charging.

Available with a battery capacity of 1044 kWh.

Available in two variants NCV-TRENE-P500B1044L-2H NCV-TRENE-P499B1044L-2H

Quick and complete installation
Designed according to the PGS37-1 guideline
??Complete unit, modularly expandable

Specification	Value
Product Model	NCV-TRENE 10ft
Rated AC output power	500 kW
Rated Energy	1044 kWh
Nominal Frequency	50/60Hz Hz
Battery Type	LFP / 314 Ah
Operating Temperature	(> 45°C derating)-30 ~ 55°C
Rated Voltage	832 V V
AC-Side Voltage	230 / 400 Vac 220 / 380 Vac Vac
Level of Protection	IP55
Dimensions (WHD)	2991 x 2438 x 2896 mm mm
Weight	12.5T T
Thermal Management	Liquid cooling
Fire Suppression System	Fire-resistant compartments for thermal runaway prevention
Off-grid Operation	Support
Certifications	IEC 62619, IEC 63056, IEC 62040, IEC 62477, IEC 61000, IEC 62933, UN 38.3, UL9540A

High Performance

Suitable for large-scale and high-demand storage applications
Seamlessly supports PV integration, on/off-grid functionality, and intelligent energy management
Intelligent liquid-cooled temperature control system to ensure higher efficiency and extends battery cycle life

Intelligent Design

All pre-assembled, limited on-site work, accelerate commissioning process
High-efficiency heat dissipation, increase battery life and system discharge capacity
1-hour spare part swap capability for reduced downtime

Assured Safety

The electrical cabinet and battery cabinet are separated to prevent thermal runaway
Multi-level protection system ensures battery safety
IP55 outdoor cablinet and optional C5 anti-corrosion

Flexible Adaptability

Supports multiple delivery formats, including in-cabinet installations, containerized solutions, and all-in-one solutions
Equipped with both local control and remote monitoring platforms
Facilitates quick system recovery and reduced O&M costs

Key Features

High Quality

Equipped with high-quality and safe LFP cells that ensure flexible management of energy storage.

Control

24/7 monitoring, smart control, and wireless metering solutions for maximum efficiency.

Economical

A compact design for efficient and space-saving solutions.

Maintenance by NCV

NCV offers full maintenance and support for our solutions, ensuring your systems always perform optimally.

Cooling

Advanced cooling system for efficient and reliable performance.

Safe

Advanced fire safety with a four-layer protection system for maximum reliability.
